Lithium Battery Series
EV - Cart lithium battery
Olelon Series- Features
- Olelon 51.2V Golf Cart Lithium Battery (48V Equivalent) enhances golf cart performance by extending range, reducing weight, and improving efficiency.

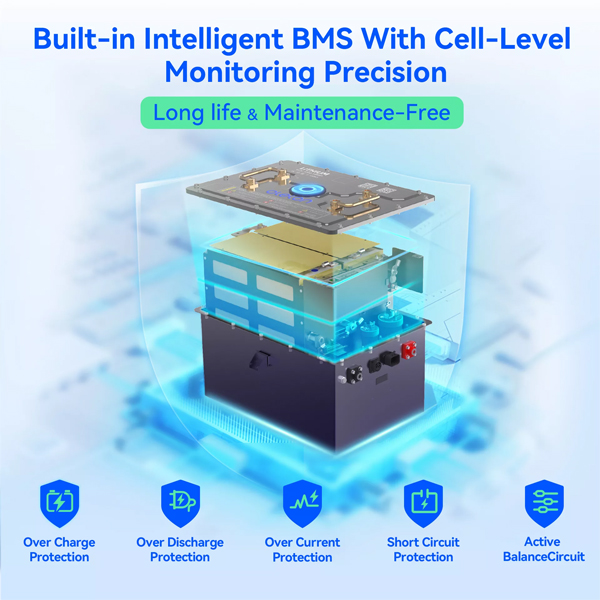

- Its intelligent BMS (Battery Management System) ensures easy installation and minimizes maintenance costs.
SPECS
| Items | 51.2V 105Ah | 51.2V 125Ah | 51.2V 150Ah | 51.2V 210Ah |
|---|---|---|---|---|
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Working Voltage | 43.2V – 58.4V | 43.2V – 58.4V | 43.2V – 58.4V | 43.2V – 58.4V |
| Nominal Capacity | 105Ah | 125Ah | 150Ah | 210Ah |
| Energy | 5,376Wh | 6,400Wh | 7,680Wh | 10,752Wh |
| IP Rating | IP67 | IP67 | IP67 | IP67 |
| Weight | 50kg (110.23 lbs) | 57kg (125.66 lbs) | 63kg (138.9 lbs) | 90kg (198.4 lbs) |
| Dimension (LxWxH) | 445x300x240mm (17.52”x11.81”x9.45”) | 463x323x258mm (18.2” x 12.7”x10.2”) | 510x375x240mm (20.1” x 14.8” x 9.5”) | 539x454x250mm (21.2” x 17.9” x 9.8”) |
| Charging Temp. Range | 32°F to 131°F | 32°F to 131°F | 32°F to 131°F | 32°F to 131°F |
| Max Continuous Discharge | 150A | 250A | 250A | 250A |
| Max Discharge 3 Sec | 480A | 480A | 480A | 480A |
| Max Discharge 30 Sec | 315A | 400A | 400A | 400A |
| Discharge Temp. Range | -22°F to 140°F | -22°F to 140°F | -22°F to 140°F | -22°F to 140°F |
